Data teknis

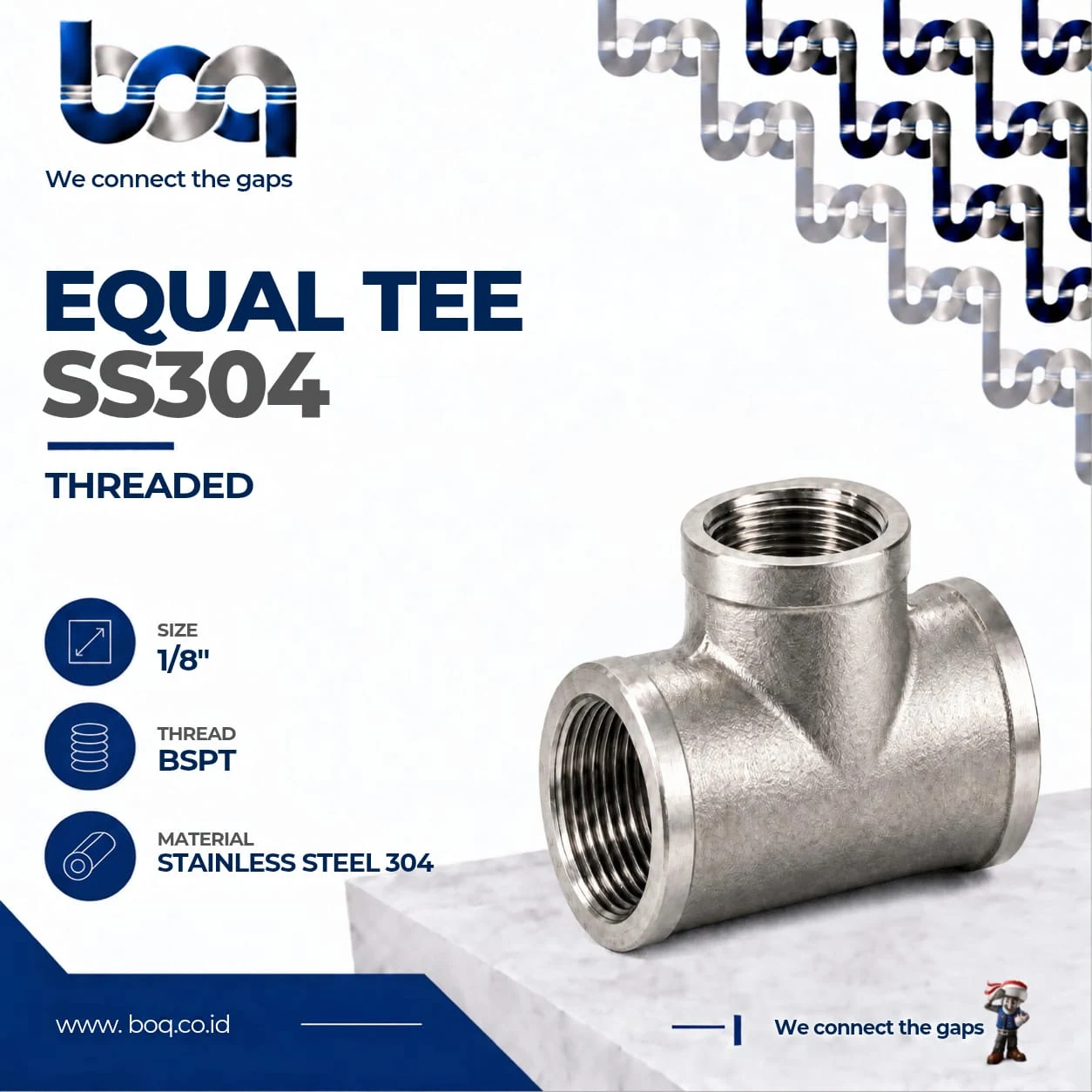

Equal Tee Stainless Steel 304 dengan koneksi ulir (threaded) presisi tingi untuk kebutuhan percabangan sistem perpipaan Anda. Terbuat dari material Stainless Steel 304 berkualitas premium yang tahan karat, tahan korosi, dan memiliki daya tahan tinggi terhadap tekanan serta suhu kerja.
Sangat cocok digunakan untuk instalasi air, gas, minyak, industri makanan/minuman, maupun aplikasi teknis/industri lainnya.
[SPESIFIKASI PRODUK]
Jenis Produk: Equal Tee Threaded (Sambungan T Ulir)
Ukuran (Size): 1/8" (Inchi)
Tipe Ulir (Thread): BSPT (British Standard Pipe Taper)
Material: Stainless Steel 304 (SS304)
Kondisi: Baru
[KEUNGGULAN PRODUK]
Tahan Karat & Korosi: Material SS304 berkualitas tinggi menjamin masa pakai lebih lama.
Presisi Tinggi: Ulir BSPT rapi dan rapat untuk meminimalkan risiko kebocoran.
Kuat & Kokoh: Mampu menahan tekanan serta kondisi lingkungan industri maupun domestik.
Serbaguna: Cocok untuk percabangan instalasi cairan, udara, maupun gas.
Katalog SKU
| Diameter | Nominal Size (inch) | Standard | Valve Type | Thread Size | Panjang (mm) | Schedule / Class | Class / Rating | Pitch (mm) | Tipe Drat | Grade | Pressure Rating | Facing | Material | Size (inch) | Connection Type | Finish / Coating | SKU | Stok | Harga |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.7 | 1/8" | BSPT | N/A | 1/8" | 34 | N/A | CLAS150 | 0.907 | BSPT | ASTM A351 CF8 | PN16 | N/A | SS304 | 1/8" | THREADED | N/A | 9.7 - 1/8"inch - BSPT | 100 | Rp 24.600 |

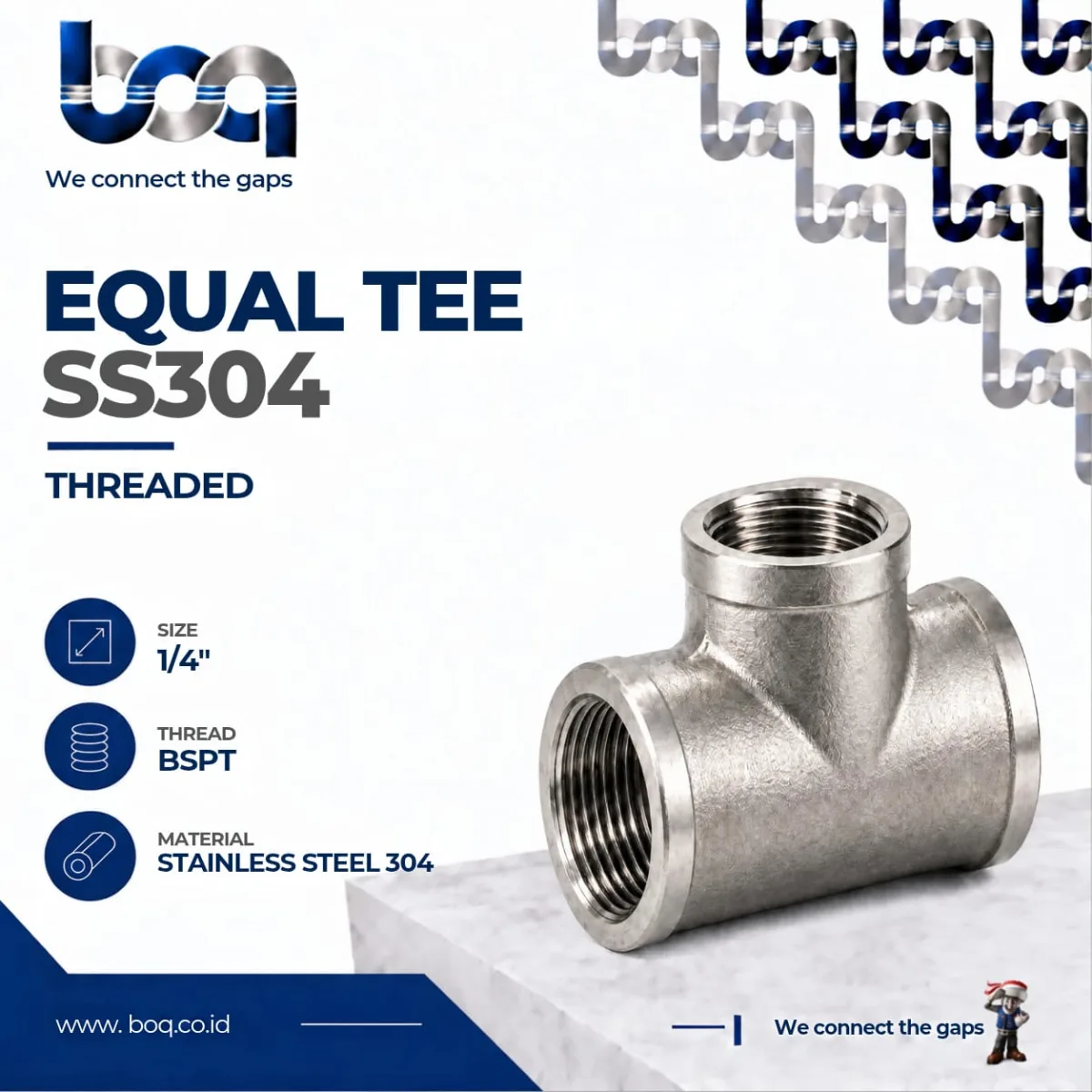

| 13 | 1/4" | BSPT | N/A | 1/4" | 38 | N/A | CLAS150 | 1337 | BSPT | ASTM A351 CF8 | PN16 | N/A | SS304 | 1/4" | THREADED | N/A | 13 - 1/4"inch - BSPT | 100 | Rp 26.100 |
dari 0 ulasan
Diskusikan spesifikasi, kompatibilitas, atau kebutuhan proyek dengan penjual.
BOQ
Diameter: 10 | Nominal Size: 1/8" inch | Standard: ISO4144 | Thread Size: 1/8" | Valve Type: N/A | Class / Rating: CLAS150 | Panjang: 26 mm | Pitch: 0.907 mm | Schedule / Class: N/A | Facing: N/A | Grade: ASTM A351 CF8 | Pressure Rating: PN16 | Tipe Drat: BSPT | Material: SS304 | Size: 1/8" inch | Thickness: 2 mm | Connection Type: THREADED | Finish / Coating: N/A
Rp 14.900
BOQ
Diameter: 9.7 | Nominal Size: 1/8" inch | Standard: BSPT | Thread Size: 1/8" | Valve Type: N/A | Class / Rating: CLAS150 | Panjang: 22 mm | Pitch: 0.907 mm | Schedule / Class: N/A | Facing: N/A | Grade: ASTM A351 CF8 | Pressure Rating: PN16 | Tipe Drat: BSPT | Material: SS304 | Size: 1/8" inch | Thickness: 2 mm | Connection Type: THREADED | Finish / Coating: N/A
Rp 16.400
BOQ
Diameter: 9.7 | Nominal Size: 1/8" inch | Standard: ISO4144 | Thread Size: 1/8" | Valve Type: N/A | Class / Rating: CLAS150 | Panjang: 20 mm | Pitch: 0.907 mm | Schedule / Class: N/A | Facing: N/A | Grade: ASTM A351 CF8 | Pressure Rating: PN16 | Material: SS304 | Size: 1/8" inch | Thickness: 2 mm | Connection Type: THREADED | Finish / Coating: N/A
Rp 16.400
BOQ
Diameter: 9.7 | Nominal Size: 1/8" inch | Standard: BSPT | Thread Size: 1/8" | Valve Type: N/A | Class / Rating: CLAS150 | Panjang: 22 mm | Pitch: 0.907 mm | Schedule / Class: N/A | Facing: N/A | Grade: ASTM A351 CF8 | Pressure Rating: PN16 | Tipe Drat: BSPT | Material: SS304 | Size: 1/8" inch | Thickness: 2 mm | Connection Type: THREADED | Finish / Coating: N/A
Rp 16.400
BOQ
Diameter: 9.7 | Nominal Size: 1/8" inch | Standard: BSPT | Thread Size: 1/8" | Valve Type: N/A | Class / Rating: CLAS150 | Panjang: 22 mm | Pitch: 0.907 mm | Facing: N/A | Grade: ASTM A351 CF8 | Pressure Rating: PN16 | Tipe Drat: BSPT | Material: SS304 | Size: 1/8" inch | Thickness: 2 mm | Connection Type: THREADED | Finish / Coating: N/A
Rp 16.400
BOQ
Diameter: 12 | Nominal Size: 1/8" inch | Standard: ISO4144 | Valve Type: N/A | Class / Rating: CLAS150 | Pitch: 0.907 mm | Facing: N/A | Grade: ASTM A351 CF8 | Tipe Drat: BSPT | Material: SS304 | Size: 1/8" inch | Connection Type: THREADED | Finish / Coating: N/A
Rp 18.000
BOQ
Diameter: 13 | Nominal Size: 1/8" inch | Thread Size: 1/8" | Class / Rating: CLAS150 | Panjang: 16 mm | Pitch: 0.907 mm | Grade: ASTM A351 CF8 | Pressure Rating: PN16 | Tipe Drat: BSPT | Facing: N/A | Material: SS304 | Size: 1/8" inch | Connection Type: THREADED | Finish / Coating: N/A
Rp 16.400
BOQ
Diameter: 15 | Nominal Size: 1/8" inch | Thread Size: 1/8" | Class / Rating: CLAS150 | Panjang: 17 mm | Pitch: 0.907 mm | Tipe Drat: BSPT | Material: SS304 | Size: 1/8" inch | Connection Type: THREADED | Finish / Coating: N/A
Rp 15.600
BOQ
Diameter: 13 | Nominal Size: 1/8" inch | Standard: ISO4144 | Thread Size: 1/8" | Class / Rating: CLAS150 | Panjang: 17 mm | Pitch: 0.907 mm | Grade: ASTM A351 CF8 | Tipe Drat: BSPT | Material: SS304 | Size: 1/8" inch | Thickness: 2 mm | Connection Type: THREADED | Finish / Coating: N/A
Rp 13.500
BOQ
Diameter: 12 | Nominal Size: 1/8" inch | Standard: DIN 2986 | Thread Size: 1/8" | Class / Rating: CLAS150 | Panjang: 17 mm | Grade: ASTM A351 CF8 | Tipe Drat: BSPT | Material: SS304 | Size: 1/8" inch | Thickness: 2 mm | Connection Type: THREADED | Finish / Coating: N/A
Rp 17.400
BOQ
Diameter: 10 | Nominal Size: 1/8" inch | Standard: ISO4144 | Thread Size: 1/8" | Valve Type: N/A | Class / Rating: CLAS150 | Panjang: 26 mm | Pitch: 0.907 mm | Schedule / Class: N/A | Facing: N/A | Grade: ASTM A351 CF8 | Pressure Rating: PN16 | Tipe Drat: BSPT | Material: SS304 | Size: 1/8" inch | Thickness: 2 mm | Connection Type: THREADED | Finish / Coating: N/A
Rp 14.900
BOQ
Diameter: 9.7 | Nominal Size: 1/8" inch | Standard: BSPT | Thread Size: 1/8" | Valve Type: N/A | Class / Rating: CLAS150 | Panjang: 22 mm | Pitch: 0.907 mm | Schedule / Class: N/A | Facing: N/A | Grade: ASTM A351 CF8 | Pressure Rating: PN16 | Tipe Drat: BSPT | Material: SS304 | Size: 1/8" inch | Thickness: 2 mm | Connection Type: THREADED | Finish / Coating: N/A
Rp 16.400
BOQ
Diameter: 9.7 | Nominal Size: 1/8" inch | Standard: ISO4144 | Thread Size: 1/8" | Valve Type: N/A | Class / Rating: CLAS150 | Panjang: 20 mm | Pitch: 0.907 mm | Schedule / Class: N/A | Facing: N/A | Grade: ASTM A351 CF8 | Pressure Rating: PN16 | Material: SS304 | Size: 1/8" inch | Thickness: 2 mm | Connection Type: THREADED | Finish / Coating: N/A
Rp 16.400
BOQ
Diameter: 9.7 | Nominal Size: 1/8" inch | Standard: BSPT | Thread Size: 1/8" | Valve Type: N/A | Class / Rating: CLAS150 | Panjang: 22 mm | Pitch: 0.907 mm | Schedule / Class: N/A | Facing: N/A | Grade: ASTM A351 CF8 | Pressure Rating: PN16 | Tipe Drat: BSPT | Material: SS304 | Size: 1/8" inch | Thickness: 2 mm | Connection Type: THREADED | Finish / Coating: N/A
Rp 16.400
BOQ
Diameter: 9.7 | Nominal Size: 1/8" inch | Standard: BSPT | Thread Size: 1/8" | Valve Type: N/A | Class / Rating: CLAS150 | Panjang: 22 mm | Pitch: 0.907 mm | Facing: N/A | Grade: ASTM A351 CF8 | Pressure Rating: PN16 | Tipe Drat: BSPT | Material: SS304 | Size: 1/8" inch | Thickness: 2 mm | Connection Type: THREADED | Finish / Coating: N/A
Rp 16.400
BOQ
Diameter: 12 | Nominal Size: 1/8" inch | Standard: ISO4144 | Valve Type: N/A | Class / Rating: CLAS150 | Pitch: 0.907 mm | Facing: N/A | Grade: ASTM A351 CF8 | Tipe Drat: BSPT | Material: SS304 | Size: 1/8" inch | Connection Type: THREADED | Finish / Coating: N/A
Rp 18.000
BOQ
Diameter: 13 | Nominal Size: 1/8" inch | Thread Size: 1/8" | Class / Rating: CLAS150 | Panjang: 16 mm | Pitch: 0.907 mm | Grade: ASTM A351 CF8 | Pressure Rating: PN16 | Tipe Drat: BSPT | Facing: N/A | Material: SS304 | Size: 1/8" inch | Connection Type: THREADED | Finish / Coating: N/A
Rp 16.400
BOQ
Diameter: 15 | Nominal Size: 1/8" inch | Thread Size: 1/8" | Class / Rating: CLAS150 | Panjang: 17 mm | Pitch: 0.907 mm | Tipe Drat: BSPT | Material: SS304 | Size: 1/8" inch | Connection Type: THREADED | Finish / Coating: N/A
Rp 15.600
BOQ
Diameter: 13 | Nominal Size: 1/8" inch | Standard: ISO4144 | Thread Size: 1/8" | Class / Rating: CLAS150 | Panjang: 17 mm | Pitch: 0.907 mm | Grade: ASTM A351 CF8 | Tipe Drat: BSPT | Material: SS304 | Size: 1/8" inch | Thickness: 2 mm | Connection Type: THREADED | Finish / Coating: N/A
Rp 13.500
BOQ
Diameter: 12 | Nominal Size: 1/8" inch | Standard: DIN 2986 | Thread Size: 1/8" | Class / Rating: CLAS150 | Panjang: 17 mm | Grade: ASTM A351 CF8 | Tipe Drat: BSPT | Material: SS304 | Size: 1/8" inch | Thickness: 2 mm | Connection Type: THREADED | Finish / Coating: N/A
Rp 17.400
BOQ
