Data teknis

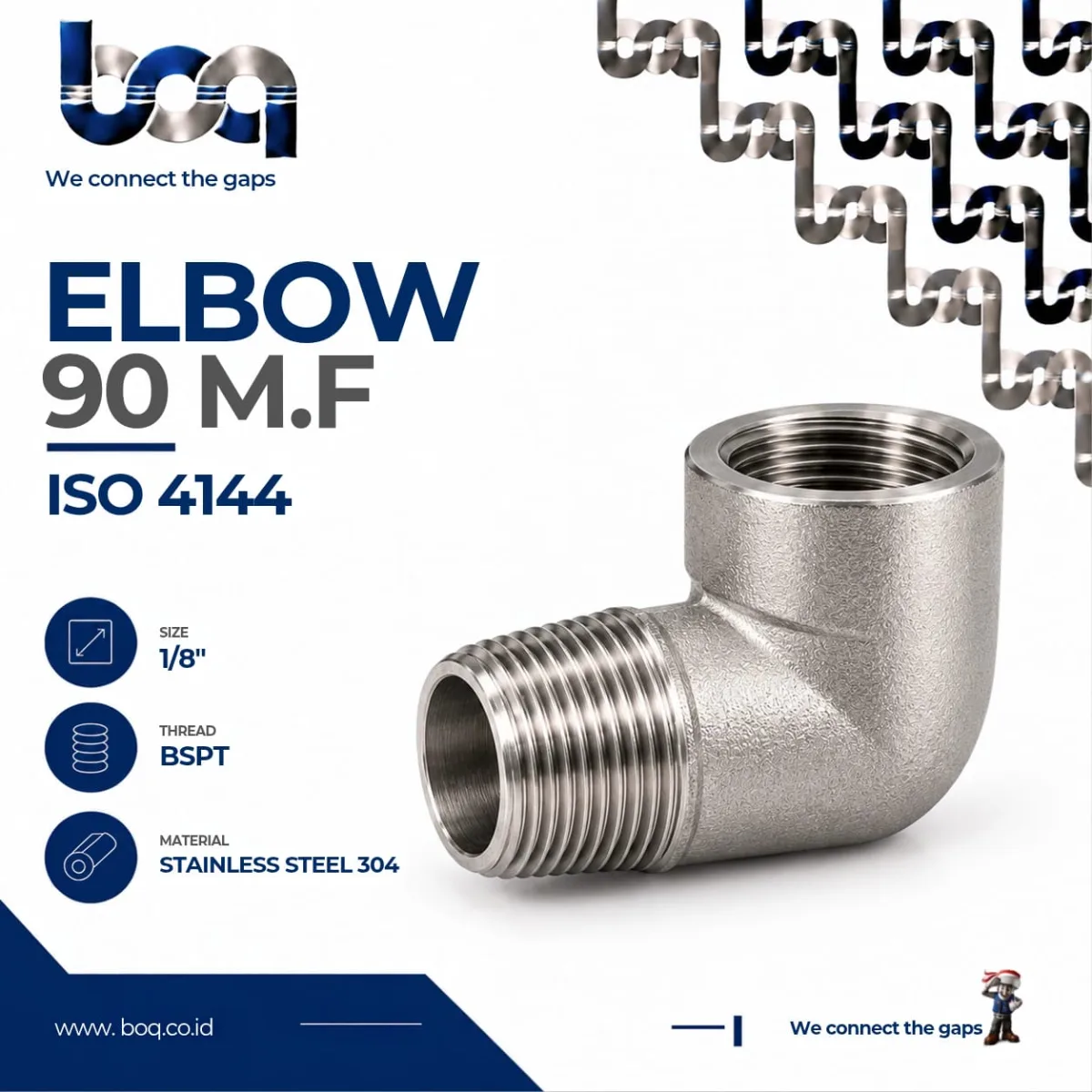

Elbow 90 M.F (Male-Female / Street Elbow) berbahan Stainless Steel 304 berkualitas tinggi yang diproduksi sesuai standar ISO 4144
Spesifikasi Teknis:
Nama Produk: Elbow 90 M.F (Street Elbow / Siku Drat Luar-Dalam)
Ukuran (Size): 1/8 Inch (DN6)
Standar Mutu: ISO 4144 / Class 150 / PN16
Material: Stainless Steel 304 (SS304 / ASTM A351 CF8)
Tipe Ulir: BSPT (British Standard Pipe Taper)
Jenis Koneksi: Threaded / Drat (Male x Female)
Diameter Ulir Luar (OD Male): ~10 mm
Berat Fisik Produk: ~20 gram
Keunggulan:
Hemat Space & Praktis: Menggabungkan fungsi drat luar dan drat dalam sehingga menghemat ruang instalasi dan biaya fitting tambahan.
Tahan Korosi & Karat: Material SS304 berkualitas tinggi sangat cocok untuk penggunaan jangka panjang di lingkungan lembap maupun bahan kimia ringan
Presisi Tinggi: Ulir BSPT yang rapi dan presisi meminimalkan risiko kebocoran pada sambungan pipa
Aplikasi Luas: Cocok digunakan untuk instalasi perpipaan air, gas, minyak, angin (pneumatik), dan industri umum
Katalog SKU
| Diameter | Nominal Size (inch) | Standard | Valve Type | Thread Size | Panjang (mm) | Schedule / Class | Class / Rating | Pitch (mm) | Tipe Drat | Grade | Pressure Rating | Facing | Material | Thickness (mm) | Size (inch) | Connection Type | Finish / Coating | SKU | Stok | Harga |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 1/8" | ISO4144 | N/A | 1/8" | 26 | N/A | CLAS150 | 0.907 | BSPT | ASTM A351 CF8 | PN16 | N/A | SS304 | 2 | 1/8" | THREADED | N/A | 10 - 1/8"inch - ISO4144 | 100 | Rp 14.900 |
